# Hardware

{% hint style="warning" %}
Ensure the hardware fits into the [enclosure](https://datadrivensailing.gitbook.io/wiki/boattracker/setup-instructions/enclosure) before proceeding with soldering.&#x20;
{% endhint %}

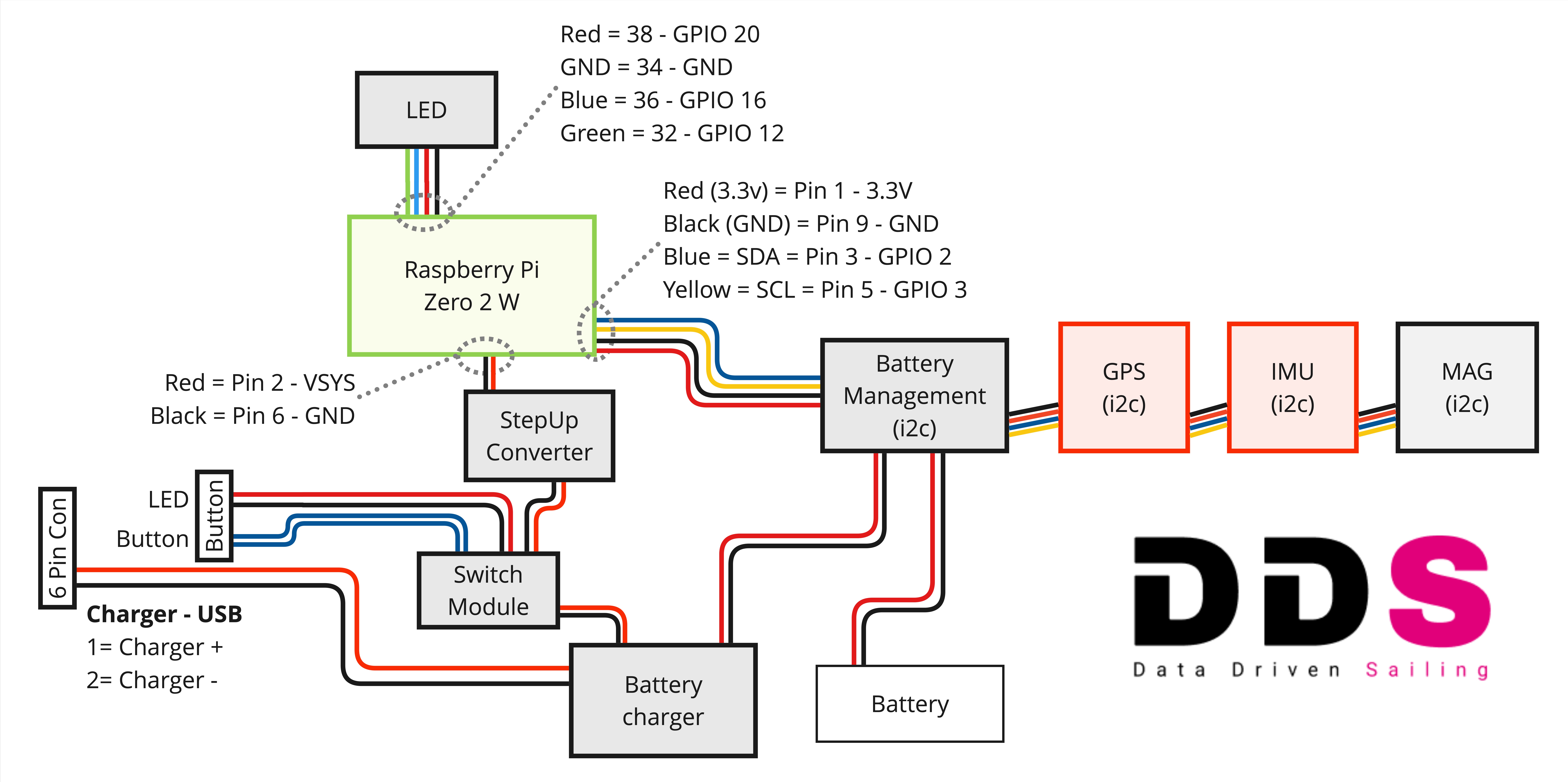

## Electrical Schema

<figure><img src="https://3849893206-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3nOHnHqWSETquXdlfpsF%2Fuploads%2FrV3T3LiZrnMC7gSKbaJc%2FElectricPlan_BoatTracker.jpg?alt=media&#x26;token=046c0ec9-95c3-434c-b8dc-a88bd84f3390" alt=""><figcaption></figcaption></figure>

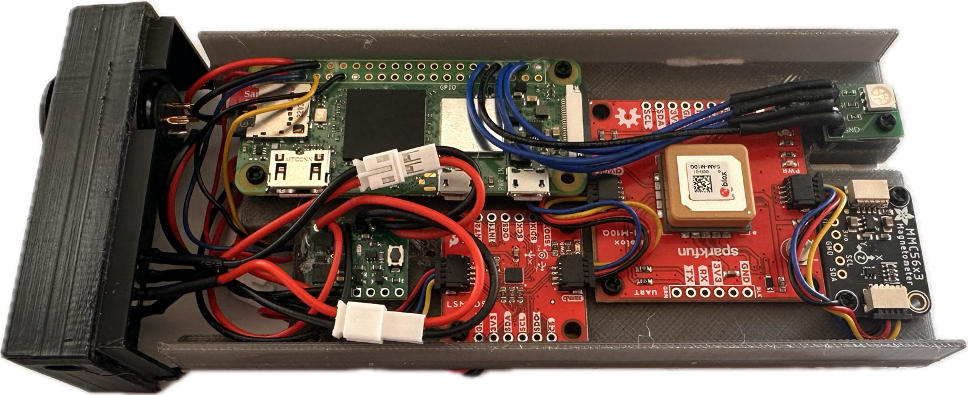

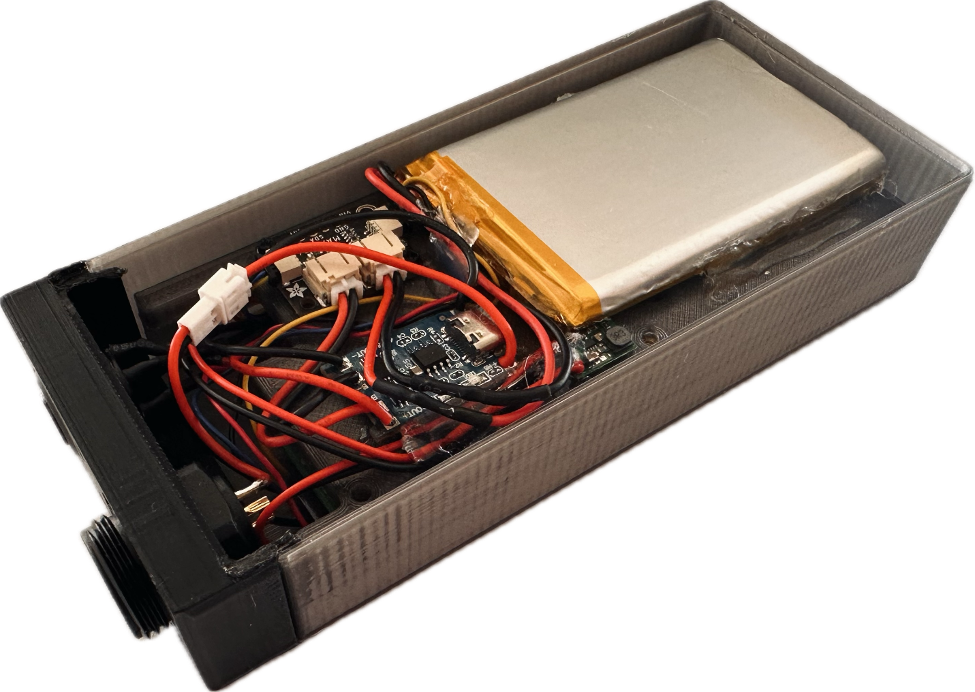

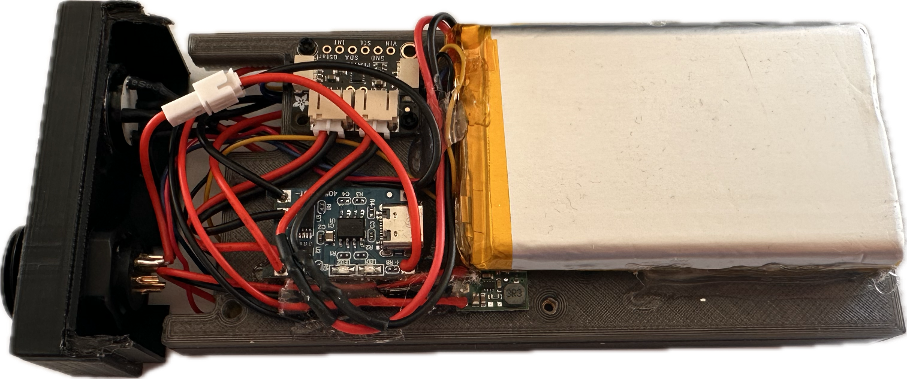

Solder all together like in the schema stated and shown in the pictures below.

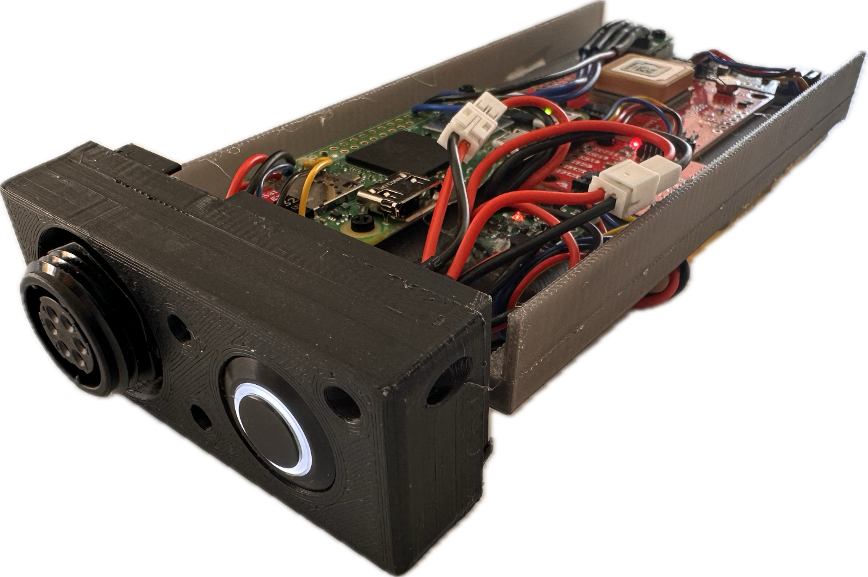

<div align="left"><figure><img src="https://3849893206-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3nOHnHqWSETquXdlfpsF%2Fuploads%2FfCRknvj2iPjJMsWYsrzx%2FSoldered_BoatTracker1.png?alt=media&#x26;token=a03e5fa8-0722-44d9-a9cd-1a783bb3200e" alt="" width="563"><figcaption></figcaption></figure></div>

<div align="left"><figure><img src="https://3849893206-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3nOHnHqWSETquXdlfpsF%2Fuploads%2FylGSQtn9fRcCoxDA2sVv%2FSoldered_BoatTracker2.png?alt=media&#x26;token=1d6ee1d3-1e71-407d-9be6-2a1334249674" alt="" width="563"><figcaption></figcaption></figure></div>

<div align="left"><figure><img src="https://3849893206-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3nOHnHqWSETquXdlfpsF%2Fuploads%2FoZKjxl9qwmdXVhDiMgGb%2FSoldered_BoatTracker3.png?alt=media&#x26;token=d22d249a-dc9a-481a-8f0c-d13ea1a2c38e" alt="" width="563"><figcaption></figcaption></figure></div>

<div align="left"><figure><img src="https://3849893206-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3nOHnHqWSETquXdlfpsF%2Fuploads%2F9DpEbQQ4vGg7AI5YrMBW%2FSoldered_BoatTracker4.png?alt=media&#x26;token=ae8134de-d375-4621-9d2e-a5f8d581cdb2" alt="" width="563"><figcaption></figcaption></figure></div>

### Pinout Raspberry Pi Zero 2W

This website provides a Pinout plan for the Raspberry Pi Zero 2W (all Raspberry Pi's with the 40 Pin connector are the same): <https://pinout.xyz/pinout/i2c>
